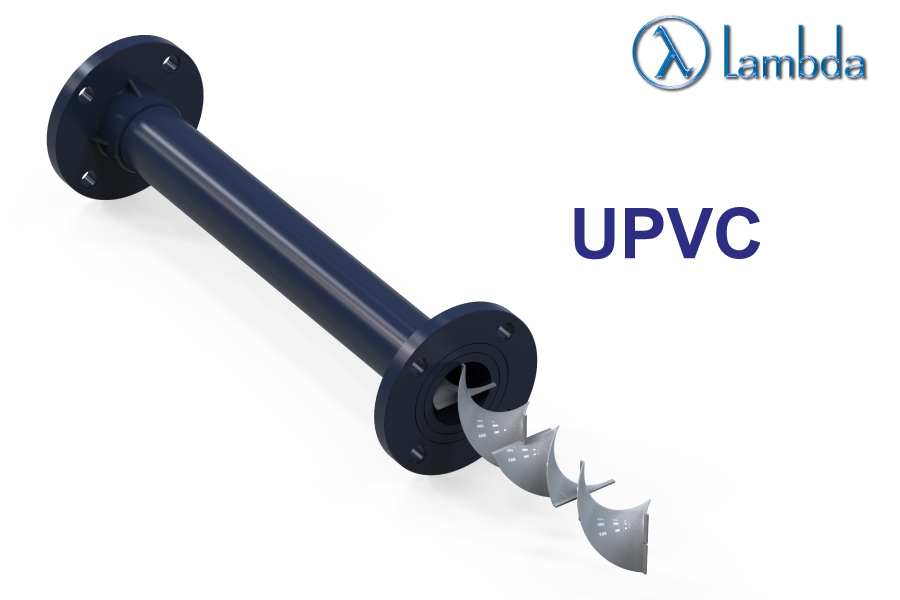

| Part Number | Nominal Size [mm.] | Nominal Size [Inch] | D3 | D4 | D5 | L | T | n | Øe |
|---|---|---|---|---|---|---|---|---|---|
| SMV020A-V004G | 20 | 3/4" | 27 mm | 75 mm | 100 mm | 130 mm | 14 mm | 4 mm | 15 mm |
| SMV025A-V004G | 25 | 1" | 33 mm | 90 mm | 125 mm | 165 mm | 14 mm | 4 mm | 19 mm |
| SMV040A-V004G | 40 | 1-1/2" | 48 mm | 105 mm | 140 mm | 250 mm | 16 mm | 4 mm | 19 mm |
| SMV050A-V004G | 50 | 2" | 60 mm | 120 mm | 155 mm | 325 mm | 16 mm | 4 mm | 19 mm |
| SMV065A-V004G | 65 | 2-1/2" | 73 mm | 140 mm | 175 mm | 395 mm | 16 mm | 4 mm | 19 mm |
| SMV080A-V004G | 80 | 3" | 89 mm | 150 mm | 185 mm | 490 mm | 18 mm | 8 mm | 19 mm |
| SMV100A-V004G | 100 | 4" | 114 mm | 175 mm | 210 mm | 635 mm | 18 mm | 8 mm | 19 mm |
| SMV150A-V004G | 150 | 6" | 168 mm | 240 mm | 280 mm | 995 mm | 21 mm | 8 mm | 23 mm |
| SMV200A-V004G | 200 | 8" | 219 mm | 290 mm | 330 mm | 1,250 mm | 21 mm | 12 mm | 23 mm |
| Part Number | Nominal Size [mm.] | Nominal Size [Inch] | D3 | D4 | D5 | L | T | n | Øe |
|---|---|---|---|---|---|---|---|---|---|
| SMV020A-V006G | 20 | 3/4" | 27 mm | 75 mm | 100 mm | 185 mm | 14 mm | 4 mm | 15 mm |
| SMV025A-V006G | 25 | 1" | 33 mm | 90 mm | 125 mm | 235 mm | 14 mm | 4 mm | 19 mm |
| SMV040A-V006G | 40 | 1-1/2" | 48 mm | 105 mm | 140 mm | 365 mm | 16 mm | 4 mm | 19 mm |
| SMV050A-V006G | 50 | 2" | 60 mm | 120 mm | 155 mm | 475 mm | 16 mm | 4 mm | 19 mm |
| SMV065A-V006G | 65 | 2-1/2" | 73 mm | 140 mm | 175 mm | 580 mm | 16 mm | 4 mm | 19 mm |
| SMV080A-V006G | 80 | 3" | 89 mm | 150 mm | 185 mm | 720 mm | 18 mm | 8 mm | 19 mm |
| SMV100A-V006G | 100 | 4" | 114 mm | 175 mm | 210 mm | 940 mm | 18 mm | 8 mm | 19 mm |
| SMV150A-V006G | 150 | 6" | 168 mm | 240 mm | 280 mm | 1,415 mm | 21 mm | 8 mm | 23 mm |
| SMV200A-V006G | 200 | 8" | 219 mm | 290 mm | 330 mm | 1,855 mm | 21 mm | 12 mm | 23 mm |
| Part Number | Nominal Size [mm.] | Nominal Size [Inch] | D3 | D4 | D5 | L | T | n | Øe |
|---|---|---|---|---|---|---|---|---|---|
| SMV020A-V008G | 20 | 3/4" | 27 mm | 75 mm | 100 mm | 240 mm | 14 mm | 4 mm | 15 mm |
| SMV025A-V008G | 25 | 1" | 33 mm | 90 mm | 125 mm | 305 mm | 14 mm | 4 mm | 19 mm |
| SMV040A-V008G | 40 | 1-1/2" | 48 mm | 105 mm | 140 mm | 480 mm | 16 mm | 4 mm | 19 mm |
| SMV050A-V008G | 50 | 2" | 60 mm | 120 mm | 155 mm | 625 mm | 16 mm | 4 mm | 19 mm |
| SMV065A-V008G | 65 | 2-1/2" | 73 mm | 140 mm | 175 mm | 765 mm | 16 mm | 4 mm | 19 mm |
| SMV080A-V008G | 80 | 3" | 89 mm | 150 mm | 185 mm | 955 mm | 18 mm | 8 mm | 19 mm |
| SMV100A-V008G | 100 | 4" | 114 mm | 175 mm | 210 mm | 1,245 mm | 18 mm | 8 mm | 19 mm |
| SMV150A-V008G | 150 | 6" | 168 mm | 240 mm | 280 mm | 1,875 mm | 21 mm | 8 mm | 23 mm |
| SMV200A-V008G | 200 | 8" | 219 mm | 290 mm | 330 mm | 2,460 mm | 21 mm | 12 mm | 23 mm |
