CENB-E
- CAPACITY : 100L - 3,000L
- MATERIAL : LLDPE, HDPE
Color
Tema polyethylene tanks have viriaty range of product applications in chemical, food, water treatment, pharmaceutical and cosmetic process and can be installed outdoor.

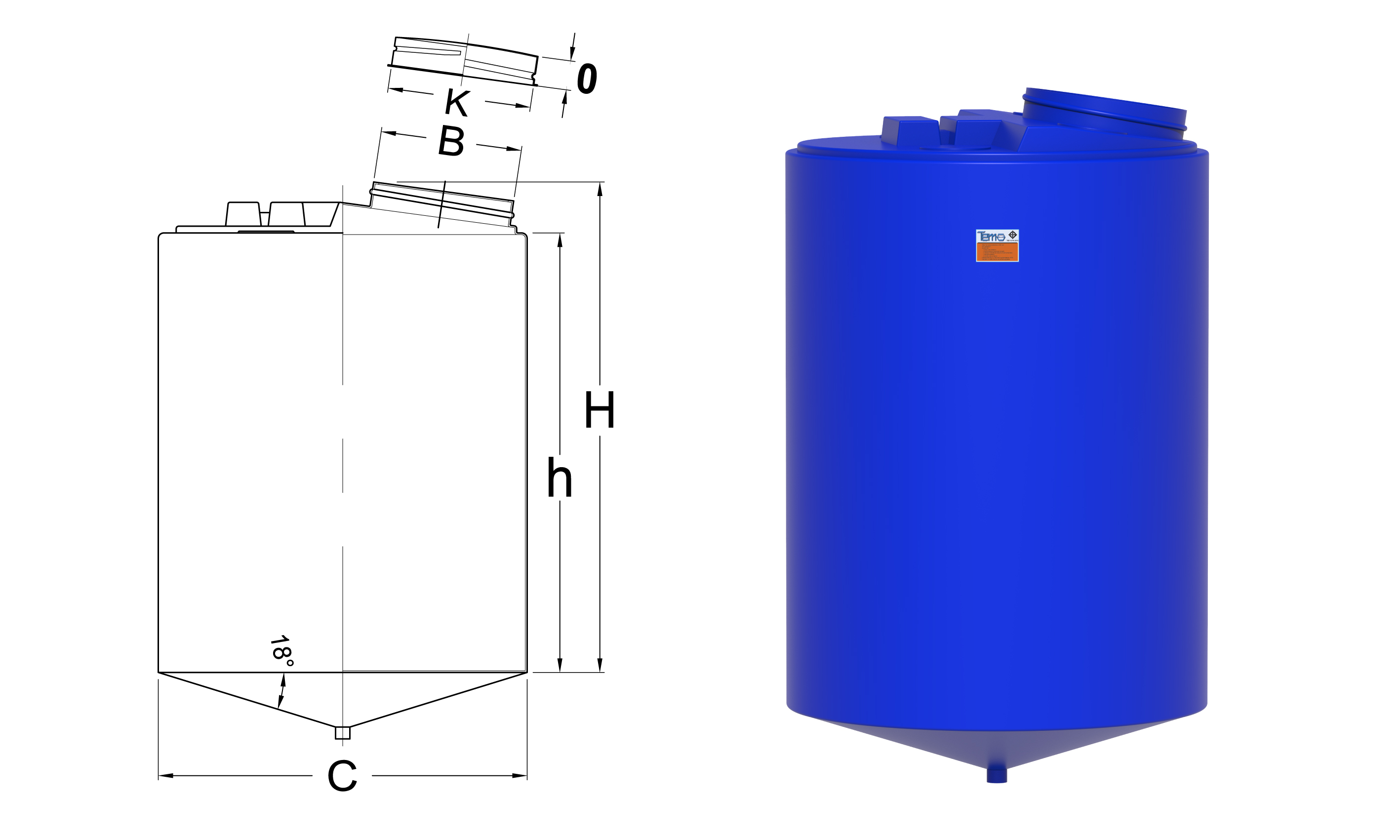

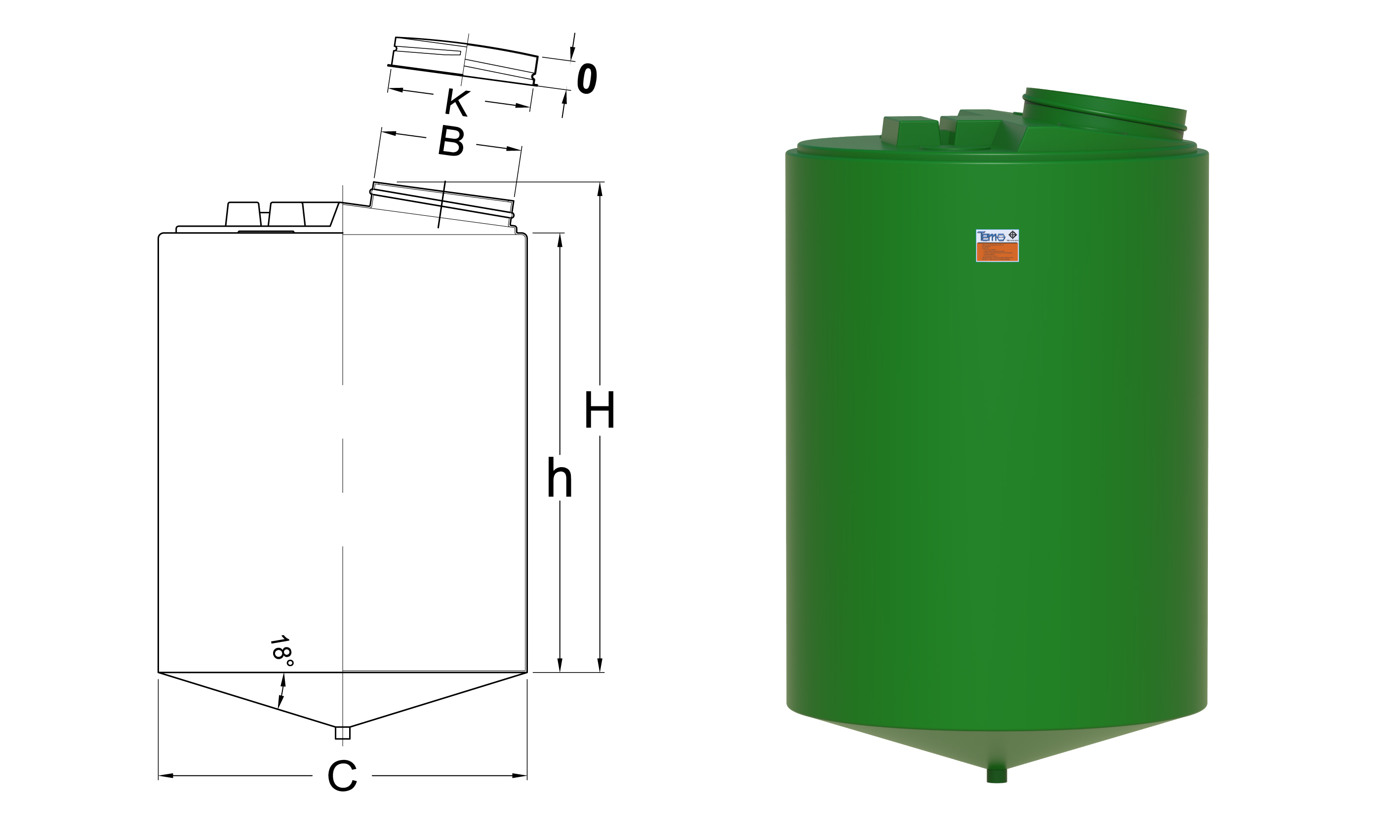

| Part Number | Capacity (Litre) | B | C | H | h | Thickness | Lid Part Number | K | O | Thickness | Approx. Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| CENB100E-M116 | 100 | 150 | 500 | 660 | 575 | 3.5 | CT0150B-HX29 | 150 | 40 | 2.0 | 5.00 |
| CENB100E-M117 | 100 | 150 | 500 | 660 | 575 | 4.0 | CT0150B-HX29 | 150 | 40 | 2.0 | 6.00 |
| CENB100E-M118 | 100 | 150 | 500 | 660 | 575 | 6.0 | CT0150B-HX29 | 150 | 40 | 2.0 | 7.00 |
| CENB100E-M9X6 | 100 | 150 | 500 | 660 | 575 | 7.5 | CT0150B-HX29 | 150 | 40 | 2.0 | 8.50 |
| CENB200E-M120 | 200 | 150 | 650 | 750 | 670 | 3.5 | CT0150B-HX29 | 150 | 40 | 2.0 | 10.00 |
| CENB200E-M122 | 200 | 150 | 650 | 750 | 670 | 4.0 | CT0150B-HX29 | 150 | 40 | 2.0 | 11.00 |
| CENB200E-M128 | 200 | 150 | 650 | 750 | 670 | 6.0 | CT0150B-HX29 | 150 | 40 | 2.0 | 16.00 |
| CENB200E-M133 | 200 | 150 | 650 | 750 | 670 | 7.5 | CT0150B-HX29 | 150 | 40 | 2.0 | 22.00 |
| CENB500E-M131 | 500 | 395 | 870 | 1,040 | 915 | 4.5 | CT0395A-M1X8 | 395 | 90 | 3.0 | 20.00 |
| CENB500E-M133 | 500 | 395 | 870 | 1,040 | 915 | 5.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 22.00 |
| CENB500E-M136 | 500 | 395 | 870 | 1,040 | 915 | 5.5 | CT0395A-M1X8 | 395 | 90 | 3.0 | 25.00 |
| CENB500E-M145 | 500 | 395 | 870 | 1,040 | 915 | 7.5 | CT0395A-M1X8 | 395 | 90 | 3.0 | 34.00 |
| CENB1K0E-M146 | 1,000 | 395 | 1,030 | 1,540 | 1,390 | 5.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 35.00 |
| CENB1K0E-M140 | 1,000 | 395 | 1,030 | 1,540 | 1,390 | 5.5 | CT0395A-M1X8 | 395 | 90 | 3.0 | 39.00 |
| CENB1K0E-M163 | 1,000 | 395 | 1,030 | 1,540 | 1,390 | 7.5 | CT0395A-M1X8 | 395 | 90 | 3.0 | 57.00 |
| CENB1K0E-M178 | 1,000 | 395 | 1,030 | 1,540 | 1,390 | 9.5 | CT0395A-M1X8 | 395 | 90 | 3.0 | 67.00 |
| CENB1K5E-M162 | 1,500 | 395 | 1,300 | 1,430 | 1,280 | 5.5 | CT0395A-M1X8 | 395 | 90 | 3.0 | 51.00 |
| CENB1K5E-M167 | 1,500 | 395 | 1,300 | 1,430 | 1,280 | 6.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 56.00 |
| CENB1K5E-M176 | 1,500 | 395 | 1,300 | 1,430 | 1,280 | 7.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 65.00 |
| CENB1K5E-M104 | 1,500 | 395 | 1,300 | 1,430 | 1,280 | 10.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 93.00 |
| CENB2K0E-M176 | 2,000 | 395 | 1,300 | 1,800 | 1,650 | 6.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 63.00 |
| CENB2K0E-M187 | 2,000 | 395 | 1,300 | 1,800 | 1,650 | 7.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 76.00 |
| CENB2K0E-M198 | 2,000 | 395 | 1,300 | 1,800 | 1,650 | 8.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 87.00 |
| CENB2K0E-M210 | 2,000 | 395 | 1,300 | 1,800 | 1,650 | 10.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 109.00 |
| CENB2K5E-M181 | 2,500 | 395 | 1,300 | 2,050 | 1,900 | 6.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 70.00 |
| CENB2K5E-M193 | 2,500 | 395 | 1,300 | 2,050 | 1,900 | 7.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 82.00 |
| CENB2K5E-M106 | 2,500 | 395 | 1,300 | 2,050 | 1,900 | 8.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 95.00 |
| CENB2K5E-M229 | 2,500 | 395 | 1,300 | 2,050 | 1,900 | 10.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 118.00 |
| CENB3K0E-M191 | 3,000 | 395 | 1,300 | 2,550 | 2,400 | 6.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 80.70 |
| CENB3K0E-M203 | 3,000 | 395 | 1,300 | 2,550 | 2,400 | 7.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 92.70 |
| CENB3K0E-M216 | 3,000 | 395 | 1,300 | 2,550 | 2,400 | 8.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 105.70 |
| CENB3K0E-M242 | 3,000 | 395 | 1,300 | 2,550 | 2,400 | 10.0 | CT0395A-M1X8 | 395 | 90 | 3.0 | 133.70 |
| Part Number | Capacity (Litre) | B | C | H | h | Thickness | Lid Part Number | K | O | Thickness | Approx. Weight (Kg) |
