Polyethylene Tanks - Tema

Big Capacity Tanks

25,000 L (W) 35,000 L 50,000 L 25,000 L (T)

25,000 Liter Tank Capacity (WIDE)

Part Number	Thickness	Approx Total Wieght (Kg)
CEN25KE-M981	18.0 mm.	871.8
CEN25KE-M081	20.0 mm.	971.8

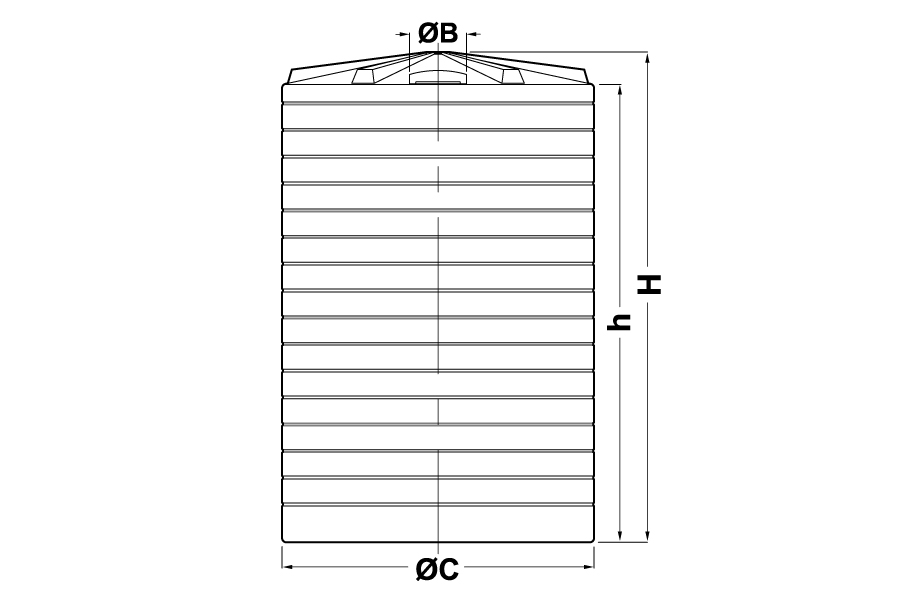

Approx. Dimension

B	C	H	h	Lid Part Number	Thickness
500 mm.	3,500 mm.	3,270 mm.	2,880 mm.	CT0500A-M2X9	3.0 mm.

35,000 Liter Tank Capacity

Part Number	Thickness	Approx Total Wieght (Kg)
CEN35KE-M3K3	20.0 mm.	1,360.5

Approx. Dimension

B	C	H	h	Lid Part Number	Thickness
500 mm.	3,500 mm.	4,720 mm.	4,355 mm.	CT0500A-M2X9	3.0 mm.

50,000 Liter Tank Capacity

Part Number	Thickness	Approx Total Wieght (Kg)
CEN50KE-M4K5	20.0 mm.	1,943.6

Approx. Dimension

B	C	H	h	Lid Part Number	Thickness
500 mm.	3,500 mm.	6,230 mm.	5,865 mm.	CT0500A-M2X9	3.0 mm.

25,000 Liter Tank Capacity (TALL)

Part Number	Thickness	Approx Total Wieght (Kg)
CEN025KC-M081	20.0 mm.	971.8

Approx. Dimension

B	C	H	h	Lid Part Number	Thickness
500 mm.	2,500 mm.	6,090 mm.	5,570 mm.	CT0500A-M2X9	3.0 mm.
